OG3 Oval Gear Positive Displacement Flow Meters

OG3 Oval Gear Flowmeters

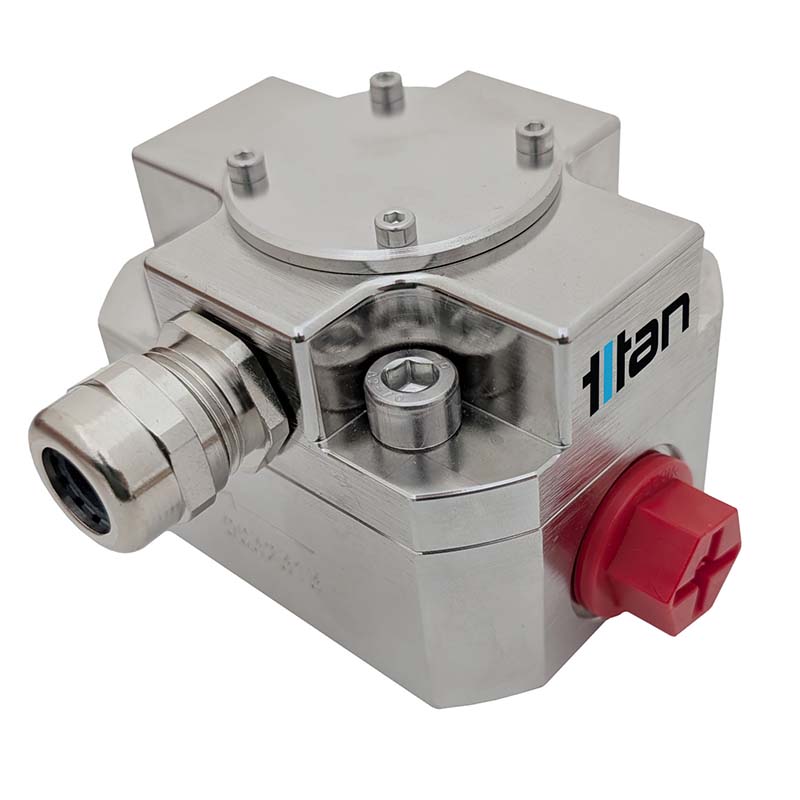

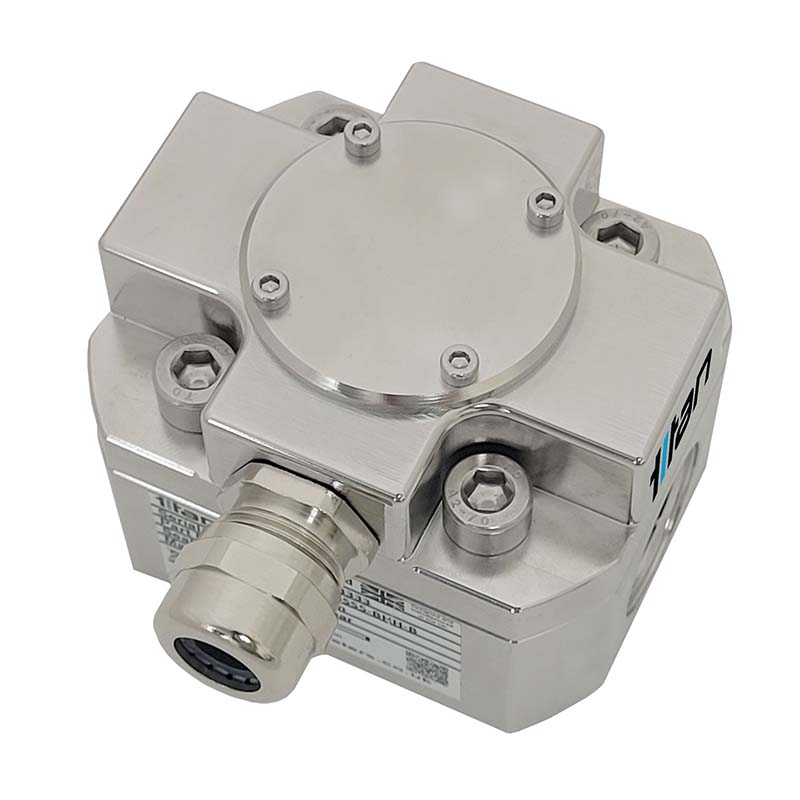

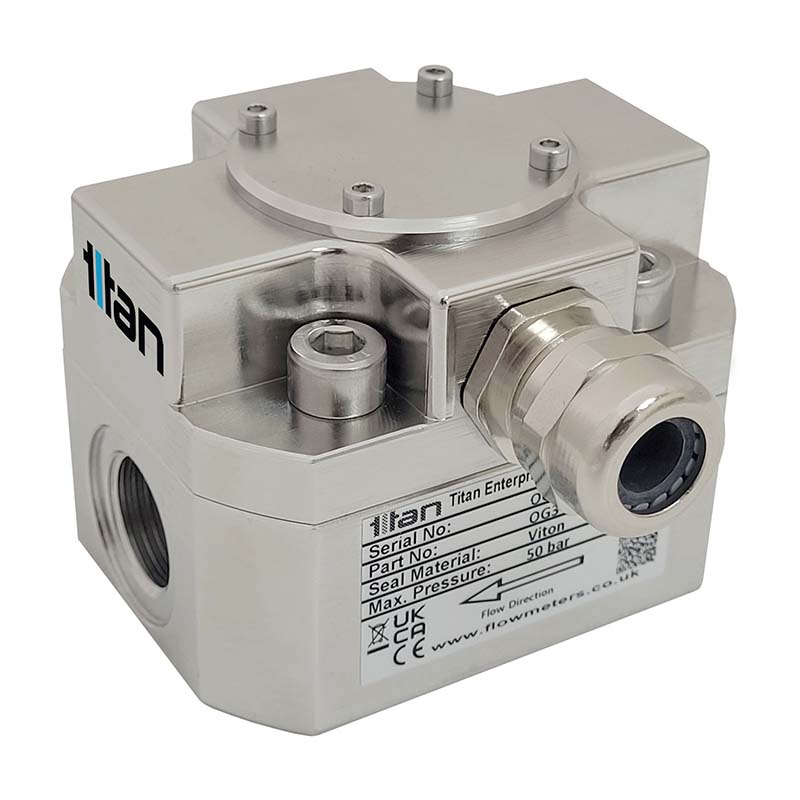

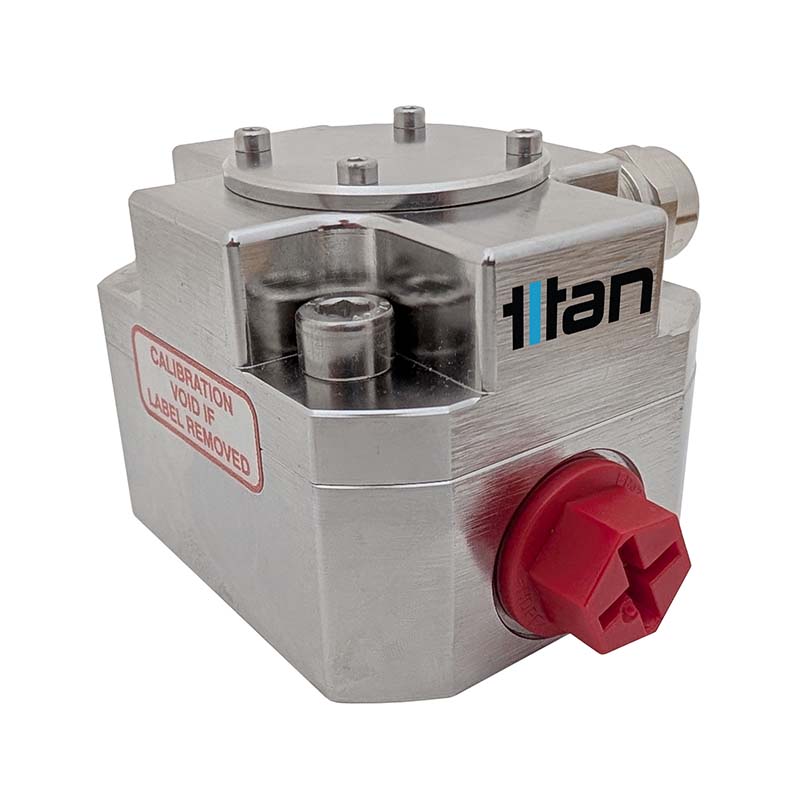

The compact OG3 oval gear liquid flowmeter gives high performance, excellent chemical resistance and has high viscosity options available for liquids above 1000cSt. This oval gear flow sensor has a standard flow range from 0.05 to 10 L/min on 30 cSt oil and 0.5 to 10 L/min on water-like liquids. With variable high pressure models up to 700 bar in standard 316 Stainless Steel with Viton™ ‘O’ ring seal and a standard ½” process fitting size, options for Aluminium or PEEK materials and sensors suitable for hazardous areas are available. For OEM applications other alternatives are available, including high pressure options and manifold mountings.

Download the OG3 Datasheet

Would you like some advice?

If you would like some help selecting a Flowmeter, our experienced team are always happy to help.

Search for other Flowmeters:

SKU N/A Category

OG3 Oval Gear Flow Meters Are Ideal for:

  • Engine test
  • Critical oil flow
  • High viscosity liquids
  • OEM equipment
  • Hazardous areas
  • Batching

Features:

  • Excellent chemical resistance
  • Rugged construction
  • Individual calibration
  • High viscosity options
  • Low pressure drop
  • No flow conditioning required
  • Compact meter assembly
  • Hall, reed switch or Namur sensor
  • Accuracy
    • 0.5% FSD water
    • 1.0% reading oil (30 cSt)
  • 0.1% repeatability
  • IP65/NEMA 4 protection
  • High Pressure Models to 700 Bar
  • Non-metallic option

Technical Data & Downloads

Technical Specification

Sample Model
(product codes)
Flow Range - Water
L/Min
Flow Range - 30 cSt Oil
L/Min
Wetted
Materials
Accuracy - Water
% FSD
Accuracy - 30 cSt Oil
% FSD
RepeatabilityDetector TypeTerminationsApprox. 'K' Factor
Pulses/Litre
Stainless Standard
OG3-SS5-VHH-B
0.5-100.05-10Body - 316 St St
Gears - Carbon filled PEEK
Seal - Viton™
Magnet - Ceramic
± 0.5± 1.0 % Reading± 0.1Hall EffectVia M20 cable gland440
Aluminium Standard
OG3-AS1-VHH-B
0.5-100.05-10Body - Aluminium
Gears - Carbon filled PEEK
Seal - Viton™
Magnet - Ceramic
± 0.5± 1.0 % Reading± 0.1Hall EffectMIL style instrument socket440

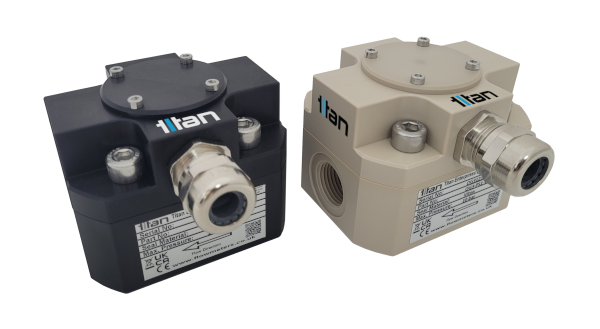

PEEK Standard
OG3-PS1-VHH-B
0.5-100.05-10Body - PEEK
Gears - Carbon filled PEEK
Seal - Viton™
Magnet - Ceramic
± 0.5± 0.5± 0.1Hall Effect4 Pin M12 440



Product Data Sheet – Specification & Order Codes

Product Instruction Manual

Technical Drawings – STP File

Installation

Trouble-free Installation and Commissioning of Your Flow Meter

Prior to installing the flow meter, read the Instruction Manual and refer to the following Installation Checklist to prevent avoidable failures due to mis-wiring etc.

For technical issues, refer to our Troubleshooting section or email technical@flowmeters.co.uk
