Turbine Flowmeters
Titan’s Range of Turbine Flow Meters
Features:
- Turbine flow meter
- Low cost
- Hall Effect or Optical sensors
- PVDF, PPS or St St bodies available
- ± 0.75% reading
- 1-2% FSD
- Compact meter assembly
- Robust sapphire bearings
- Multiple flow ranges available
- Multiple connection types available
- 0.1% Repeatability
- 4.5 to 24 V dc (model dependant)
- -15°C Min to 125°C Max (model dependant)
Ideal For:
- Drink dispensing
- Opaque fluids
- Laboratory tests
- Cooling equipment
- Semiconductor plant
- Water treatment
- Low viscosity fluid
- Active flow alarms
- Engine test
The Technology: Titan’s Turbine Flowmeters
Titan’s small turbine flowmeter range use a radial flow principle based on the Pelton wheel technique. This well proven method is the ideal way of measuring low rates of flow of low viscosity liquids.
For these mini flowmeters, a jet of fluid is directed at a turbine that is mounted on robust low friction sapphire bearings. The geometry of the turbine and the fluid chamber ensures that the rotational speed of the rotor is proportional to the flow rate through the device. The use of this radial arrangement allows more energy to be imparted into the turbine, so the bearing drag is far less important. Furthermore, because more energy is available the bearings themselves can be a lot stronger so increasing the life of the flowmeter. For larger flows, some of the liquid can bypass the turbine chamber, which then behaves as a “shunt” to the metered fluid. Accuracy is still maintained and the output remains linear.
Turbine Flow Meter Selection Chart
NSF Approved 800-Series Turbine Flow Meters | NSF Approved Beverage Turbine Flow Meters | 800-Series Low Power Turbine Flow Meters | 900-Series Turbine Flow Meters | 1000-Series Turbine Flow Meters | FT2 Optical Detection Turbine Flow Meters | FT2 Hall-Effect Detection Turbine Flow Meters | |
---|---|---|---|---|---|---|---|
View Product | View Product | View Product | View Product | View Product | View Product | View Product | |
Meters in Range | 6 | 1 | 6 | 6 | 7 | 9 | 9 |
Min Flow lpm | 0.05 | 0.60 | 0.05 | 0.05 | 0.05 | 0.02 | 0.05 |
Max Flow lpm | 15 | 10 | 15 | 15 | 30 | 160 | 160 |
Accuracy Range | ±1.0 / ±2.0% FSD | ±1.0% FSD ±2.5% Actual | ±1.0 /±2.0% FSD | ±1.0 / ±2.0% FSD | ±1.0 / ±2.0% FSD | ±1.0 / ±1.5% FSD | ±1.0 / ±2.0% FSD |
Detector Type | Hall | Hall | - | Hall | Hall | Optical | Hall |
Process Fitting Material | PVDF | PVDF | PVDF | PVDF or 316 St.St. | PVDF or 316 St.St. | PPS | PPS |
Pipe Fitting | 8mm & 12mm hose | 3/8” John Guest | 8mm hose tails | ¼“ BSP / NPT female | ½“ BSP / NPT female | Various | Various |
Technical Downloads
Please click the image or title below to download our instruction sheet. Alternatively, you can contact us if you have any questions.
Instruction Sheets for the full turbine flow sensor range can be found on the individual product pages.

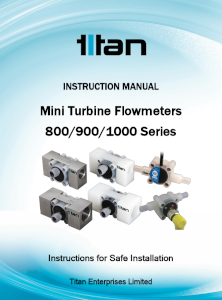

Mini Turbine Instruction Sheet PDF
Please click the image or blue heading above to download our Turbine Instruction Sheet PDF Document
Overview & Application
Our comprehensive range of radial flow turbine meters offer a selection of products for many types of application. From chemical plant to the semi-conductor industry to drink dispense or beer monitoring equipment. Titan’s mini turbines have sapphire bearings and excellent repeatability. The rotation of the rotor is detected with a Hall Effect sensor. The choice of fitting type reflects the function of the meter, some having simple hose barbs and others fitted with custom designed process connections to suit an OEM installation. Non-metallic options mean that these turbine meters can be used with very aggressive chemicals and ultra-pure water.
Turbine Flowmeter Products
Showing all 7 results
-
Turbine Flowmeter
NSF Approved Beverage Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter
NSF Approved 800-Series Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter
FT2 Optical Detection Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter

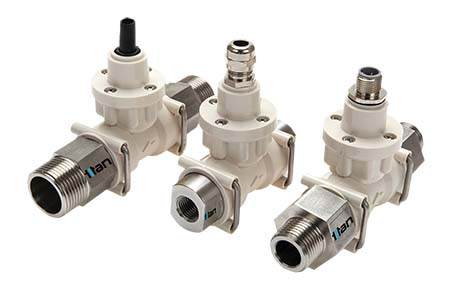

FT2 Hall-Effect Detection Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter
900-Series Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter
800-Series Low Power Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page -
Turbine Flowmeter
1000-Series Turbine Flow Meters
Select options This product has multiple variants. The options may be chosen on the product page
Browse by Flow Meter Type or Application
Use our online filtering tool to find the perfect flowmeter for your needs.
