Oval Gear Flowmeters

Titan’s Range of Oval Gear Flow Meters

Metra-Clear Oval Gear Positive Displacement Flow Meter

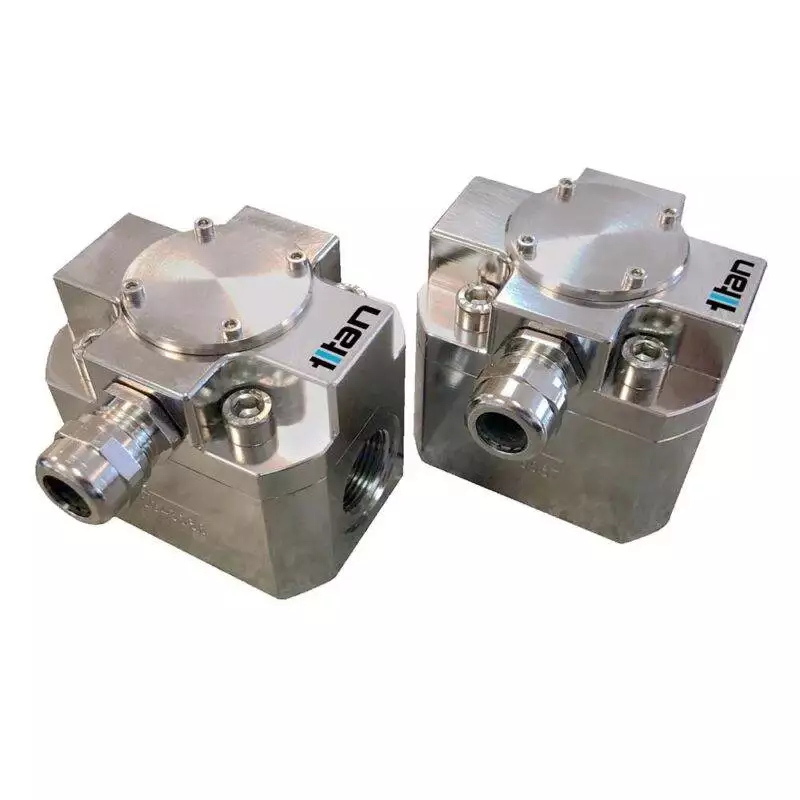

Compilation of Titan's oval gear flowmeters

Features:

Ideal For:

The Technology: Titan’s Oval Gear Flowmeters

McCloskey Oval Gear Flow Meter showing oval gears in detail

Titan’s oval gear (OG) range of flow meters operate on the basic positive displacement technique in that they take a discrete volume of liquid and pass it from the inlet to the outlet without loss or slippage. By nature these devices perform better at higher viscosities as the increasing fluid thickness reduces the leakage rate even further and extends the useful operating range to lower flow rates. The oval gear design allows these flowmeters to operate with a very low differential pressure, only millimetres of head in some cases.

At the heart of Titan’s oval gear flowmeters are a pair of toothed oval gears, one of which contains PTFE coated magnets, the gears rotating freely on robust bearings. Rotation is detected through the chamber wall by a Hall Effect detector, Namur sensor or a reed switch giving a number of pulses per litre passed.

Titan’s oval gear sensors are very suitable for measuring oils, although some models are manufactured specifically for corrosive media, being made from totally non-metallic plastic and ceramic components.

Oval Gear Flow Meter Selection Chart

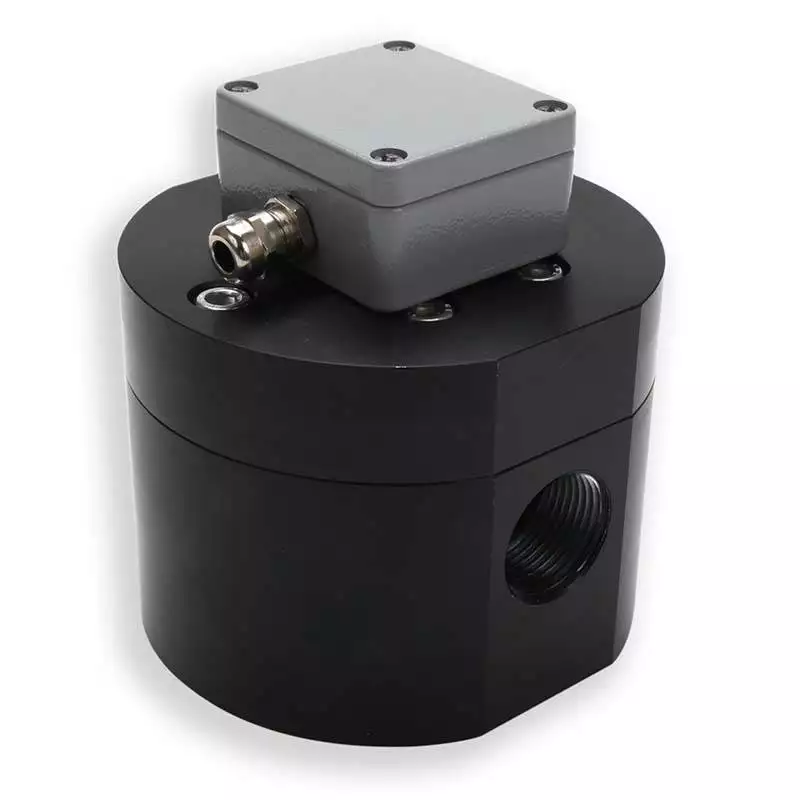

OG1 Oval
Gear Flow Meters
OG2 Oval Gear Flow MetersOG3 Oval Gear Flow MetersOG4 Oval Gear Flow MetersOG5 Oval Gear Flow MetersOG6 Oval Gear Flow MetersOG7 Oval Gear Flow MetersMetra-Clear Oval Gear Flow Meters

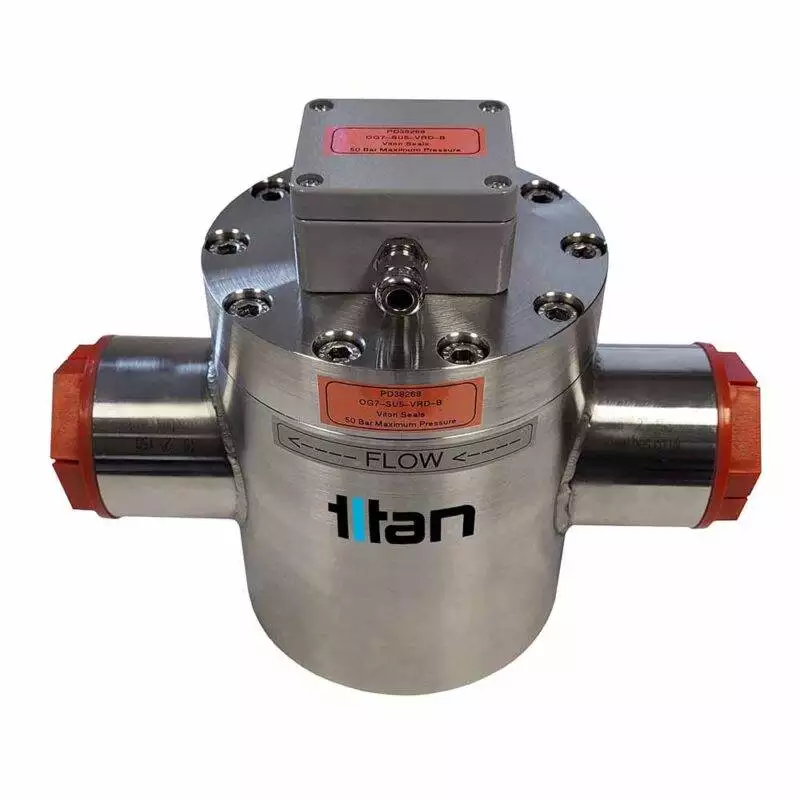

OG2 Oval Gear Positive Displacement Flow MeterOG3 Oval Gear Positive Displacement Flow MeterOG4 Oval Gear Positive Displacement Flow MeterOG5 Oval Gear Positive Displacement Flow Meter img2OG6 Oval Gear Positive Displacement Flow MeterOG7 Oval Gear Positive Displacement Flow MeterMetra-Clear Oval Gear Positive Displacement Flow Meter
View ProductView ProductView ProductView ProductView ProductView ProductView ProductView Product
Oil Flow
Min lpm0.010.030.050.250.525
Max lpm141050100200500
Accuracy ±0.75%FSD0.75%FSD1.00%0.50%0.50%0.50%0.50%
Water Flow
Min lpm0.10.150.52.541020
Max lpm141050100200500
Accuracy ±1.00% FSD1.00% FSD0.50% FSD1.00%0.75%1.00%1.00%
"K" Factor
Pulse/l
20501100440115782115

Downloads

Please click an image or title below to download one of our data sheets. Alternatively, you can contact us if you have any questions.

Oval Gear Flow Meters Data Sheet Overview front cover

Oval Gear Flow Meters Overview PDF

Please click the image or blue heading above to download our Oval Gear Flow Meters Overview PDF Document

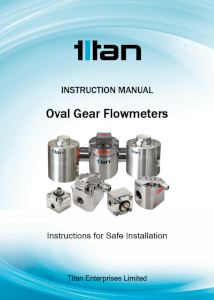

Oval Gear Flowmeters Instruction Sheet front cover

Oval Gear Flow Meters Instruction Sheet

Please click the icon or blue heading above to download our Oval Gear Instruction Sheet PDF Document

Oval Gear pressure drop graphs for standard and high viscosity

Oval Gear Pressure Drop Graphs PDF

Please click the image or blue heading above to download our Oval Gear pressure drop graphs for standard and high viscosity

Cover for ICHEME Magazine Nov FM installation article

Safe Flow Meter Installation & Flow Monitoring in Hazardous Environments

Download Titan's article by clicking on the image or blue heading above

PDF thumbnail for high pressure oval gear flowmeter data sheet

High Pressure Oval Gear Meters PDF

Please click the image or blue heading above to download our High Pressure Oval Gear Meters PDF Document

Oval gear flowmeters for High Viscosity liquids 05 23

Oval Gear Meters for High Viscosity Liquids PDF

Please click the image or blue heading above to download our Oval Gear Meters for High Viscosity Liquids PDF Document

Overview & Application

Titan’s compact rugged oval gear flowmeters are designed to give high performance with a low cost of ownership. These meters are perform well measuring simple water-like products as well as lubricating liquids. Several options are available with totally non-metallic wetted components, PEEK, ceramic and a choice of elastomer which make these OGs the ideal choice for the metering of aggressive chemicals. The standard inlet and outlet are BSP or NPT female threads. The standard models are 316 stainless steel, aluminum, and PEEK. For hazardous areas either the Namur sensor or the reed switch (simple apparatus) may be used.

The output is an NPN pulse or a voltage free contact closure either of which is readily interfaced with most electronic display or recording devices. This combination of materials and technology ensures a long life product with reliable, accurate operation throughout.
PEEK is a superb material for gear and bearing manufacture, it has excellent pressure and velocity characteristics coupled with very good thermal properties and chemical resistance.
