Instruments / Displays
Titan’s Range of Flow Measurement Instruments / Displays
Features:
- Programmable instruments for flow meter signal conditioning or display
- Uses Titan’s Interface Software or push-button programming
- Ability to customise to suit application
- User programmable settings
- Pulse or coil inputs
- Tough polymer housing - IP64 enclosure
- Panel or surface mounted
- Compact units
- DC and/or battery supply
Ideal For:
- Data monitoring / rate and total display
- Pulse output meters
- Low-cost display
- Local or remote mounting
The Technology: Flow Measurement Instruments / Displays
Titan’s Pulsite® instruments – the Pulsite® Solo and Pulsite® Link – interface with flow measuring elements to provide useful output readings or parameters. This is either in the form of locally displayed flow rate and total indication or analog outputs connecting to the computer.
Flow Measurement Instruments / Displays Selection Chart

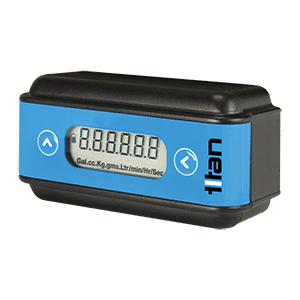

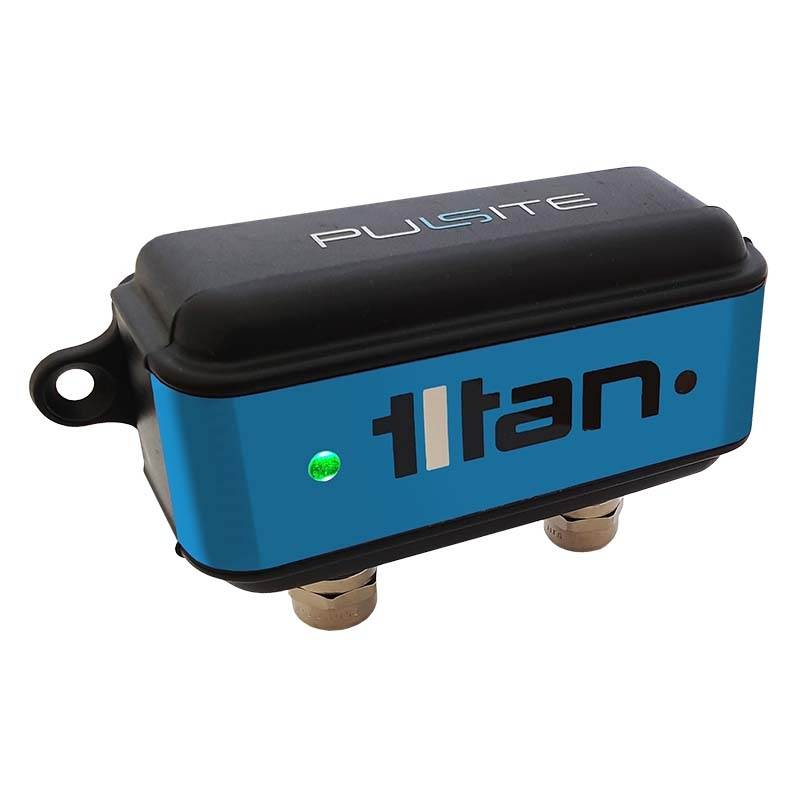

Pulsite® Solo Rate & Totaliser Battery Powered Display | Pulsite® Link Pulse & Analog Converter | |
---|---|---|
View Product | View Product | |
Instrument Type | Display | Pulse & Analog Converter |
Cost | Low | Low |
Housing Protection | IP64 | IP64 |
Flow Rate Indicator | LCD Display | Flashing LED |
Total Indicator | LCD Display | |
Pulse Convertor | Linearisation Analog & Pulse | |
Power | Battery / DC power | DC power |
Programmable | Push button | Windows-based software |
Inputs | Pulse, Coil, Reed Switch | Pulse, Reed Switch |
Outputs | Pulse NPN / PNP; 0-5Vdc/0-10Vdc; 4-20mA |
Technical Downloads
Please click an image or title below to download one of our data sheets. Alternatively, you can contact us if you have any questions.

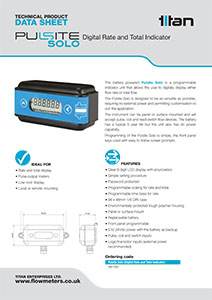

Pulsite® Solo Datasheet PDF
Please click the image or blue heading above to download our Pulsite® Solo Datasheet PDF Document

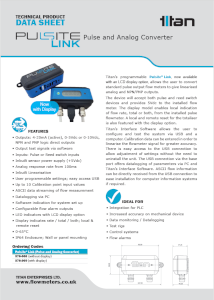

Pulsite® Link Datasheet PDF
Please click the icon or blue heading above to download our Pulsite® Link Datasheet PDF Document
Overview & Application
In addition to Titan’s Pulsite® instrument range, we also offer alternative displays for OEM customers requiring additional instruments for their intrinsically safe or batching processes for example. A display is available specifically for the insertion turbine that can be directly mounted to this flow device. For further information please contact our Sales Team on 01935 812890 or complete the Contact Form.
Titan’s Atrato® ultrasonic flow meter models have the option of a built-in display removing the need for a separate unit. The Metraflow ultrasonic flowmeter has a display as standard.
Flow Measurement Instruments / Displays Products
Showing all 2 results
