In-line Flow Meters for Pure Water Dispensing

Titan Enterprises have been offering in-line flow meters for pure water flow metering for nearly 40 years. Today, this type of flow device can fulfill critical roles in measuring the rate of flow and volume of pure water in areas including laboratory water purification dispensers, semiconductor cleaning processes and in a growing number of pharmaceutical applications.

In all these applications, contamination of the pure water must be avoided. Consequently, it is crucial that devices manufactured for ‘pure water flow metering’ are constructed from clean materials that cannot contaminate the fluids being measured.

Affordably priced, Titan’s 800-Series turbine flow meter is designed to give high performance over 6 flow ranges from 0.05 to 15 litres per minute. Its totally non-metallic wetted components make this the ideal choice for highly repeatable dispensing (+/- 0.1%) of pure water. The bearings of the 800-Series flow device are made of sapphire for long life and reliability, the body is moulded from inert PVDF to ensure there is no contamination to any fluid passing through it.

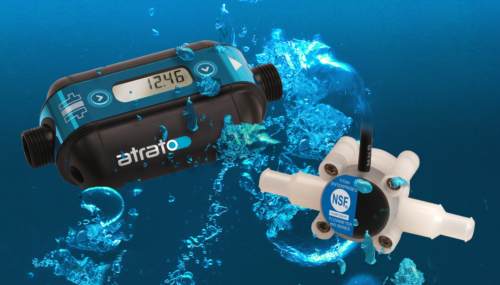

Atrato ultrasonic and 800 series flowmeters for pure water monitoring

Ultra Pure Water Flow Metering

For ultra-pure water dispensing applications – clean bore meters such as the Atrato or Metraflow ultrasonic in-line flowmeters are the flow measurement devices of choice. Both the Atrato and Metraflow have no internal moving parts, relying on patented ultrasonic time of flight measurement to totalize the flow with excellent accuracy over very wide flow ranges (0.002 to 20 litres / minute).

To discuss an optimised flow device for your pure water dispensing application please contact Titan Enterprises on +44-1935-812790 or sales@flowmeters.co.uk
