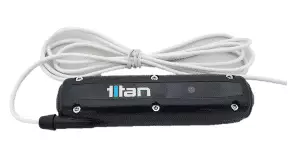

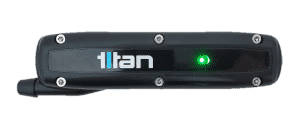

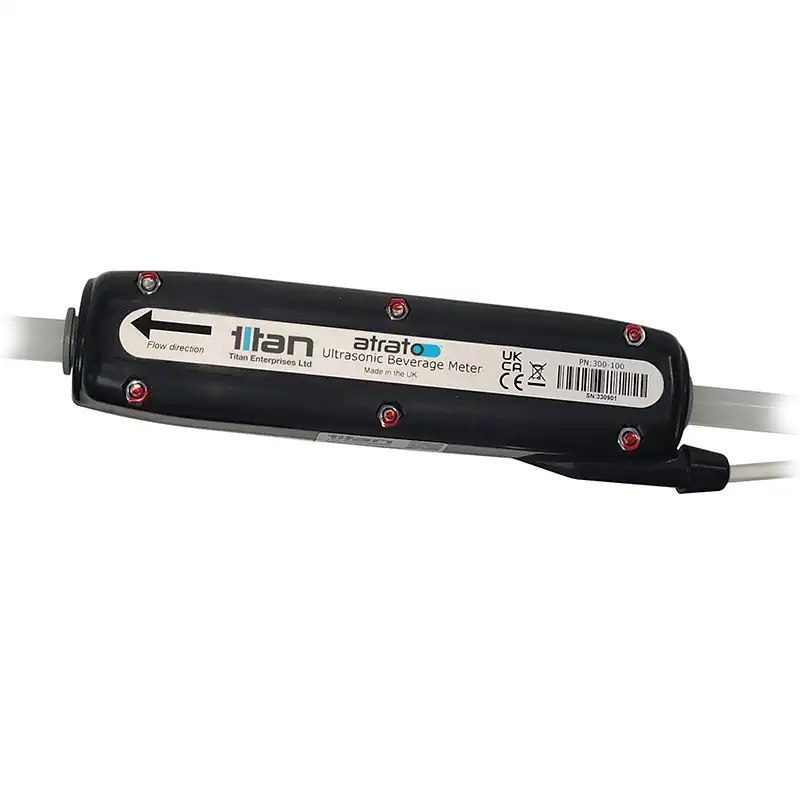

The Atrato® Ultrasonic Beverage Meter is Ideal For:
- Ultrasonic Flow Measurement
- Drink dispensing
- Beer monitoring
- Cooling equipment
- Food and beverage
- Batching
- Laboratory / Pharmaceutical processes
Features:
- Breakthrough technology for Ultrasonic Flow Meters
- Food contact approved materials
- Straight and clear 6mm bore
- Slimline design for python installation
- 5 bar rating
- ⅜” John Guest push-on fittings
- ±0.5% FSD Linearity
- 0°C – 50°C Max
- LED indicator
- Low cost
- 2m flying lead cable
Review the Ultrasonic and Turbine beverage meters to see which is the right technology choice for your application.
Technical Data & Downloads
Technical Specification
| Model | Flow Range
L/Min | Linearity
% of Reading | Maximum
Frequency Hz | Approx. 'K' Factor
Pulses/Litre |
| 300-100 | 0.5 - 10 | ± 0.5% FSD | 833 | 5,000 (approx) |
Product Data Sheet – Specification & Order Codes
Product Instruction Manual – Request by email
Installation
Trouble-free Installation and Commissioning of Your Flow Meter
Prior to installing the flow meter, read the Instruction Manual (request by email) and refer to the following Installation Checklist to prevent avoidable failures due to mis-wiring etc.
For technical issues, refer to our Troubleshooting section or email technical@flowmeters.co.uk
